Auto Send Data after Receiving Specified Data with Comm Operator

Here are the steps for sending data after receiving specified data automatically with Comm Operator.

Step 1. Run Comm Operator.

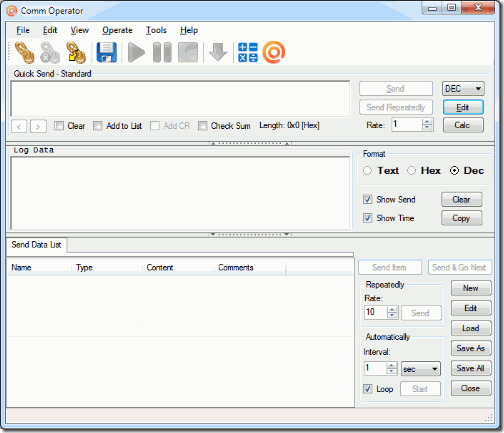

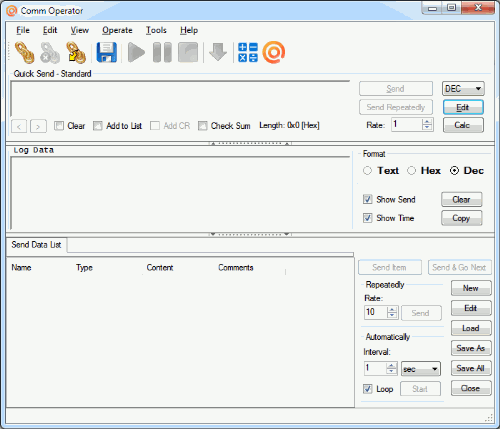

Comm Operator

Step 2: Select Edit->Auto Send from menu to open Auto Send Rule Setting dialog shown as below.

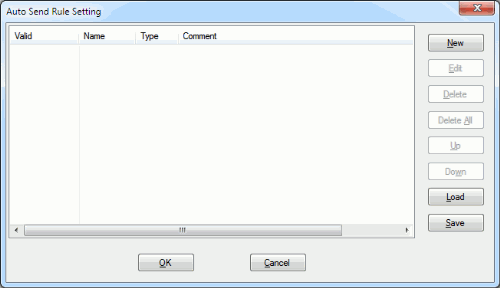

Auto Send Rule Setting

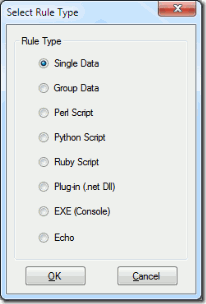

Step 3: Click New button to show Select Rule Type dialog shown as below.

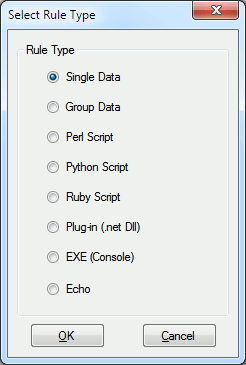

Single Rule

Step 4. Select Single Data Rule, click OK button to show Single Data Rule dialog shown as below.

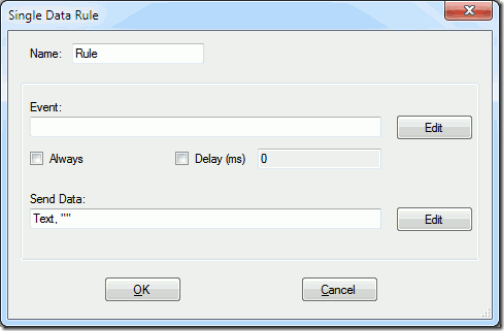

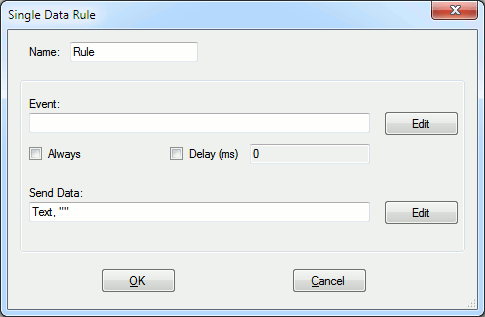

Single Data Rule

Step 5. Input the name or keep the default name.

Step 6. Setting Event.(Here, the setting is after receiving a special data 85, the data ‘254 33’ will be sent.)

  • Click Edit button to open Event Editor dialog.
  • Select On Receive and Spec Data.

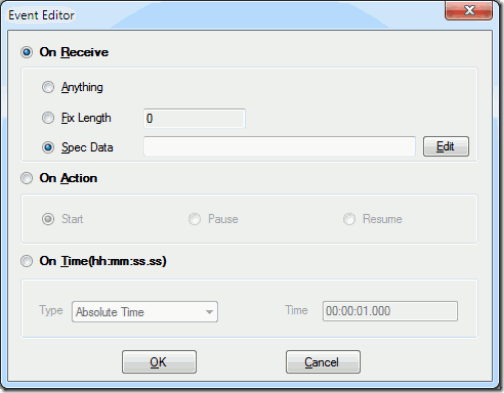

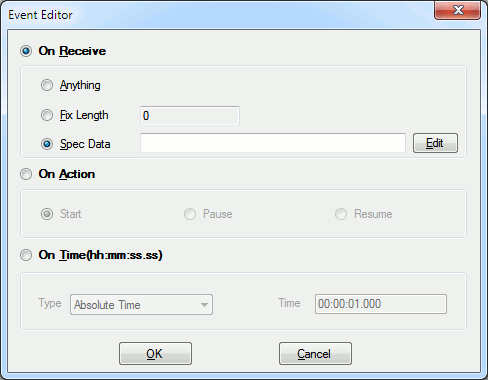

  • Event Editor -On Receive
    • Click Edit button on Event Editor dialog to open Data Editor dialog.

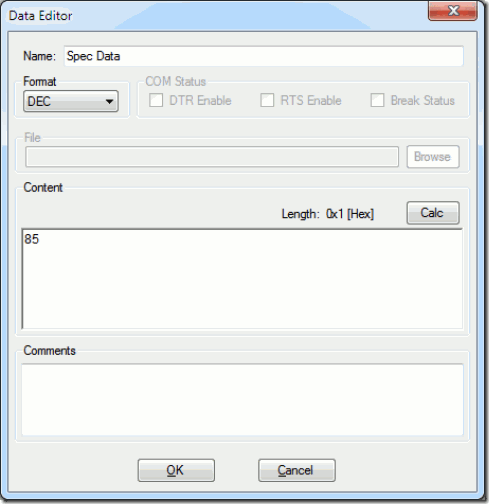

    • Input the special data that will be received. (Here is 85.)

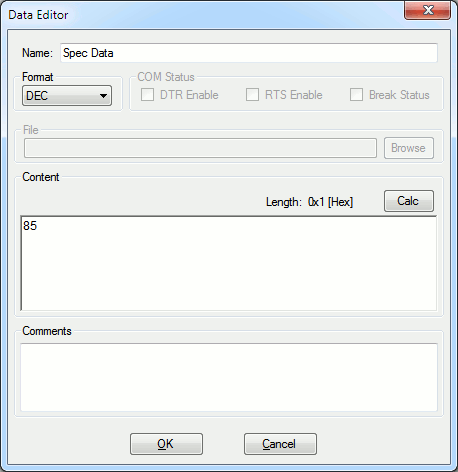

    • Data Editor
  • Click OK button to return Event Editor dialog and then return Single Data Rule dialog.

Step 7. Edit the send data.

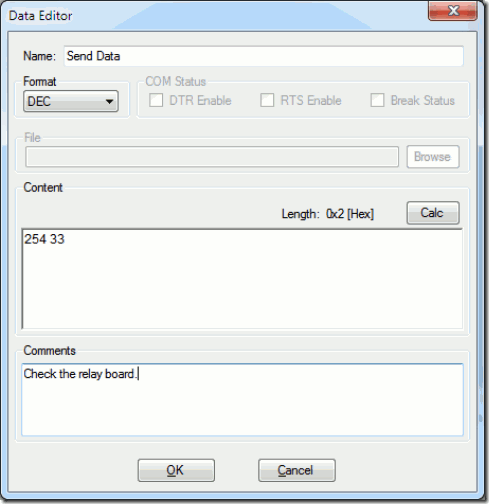

  • Click Edit button on Single Data Rule dialog to open Data Editor dialog.
  • Input the data (254 33) that will be sent after receiving the special data (85).

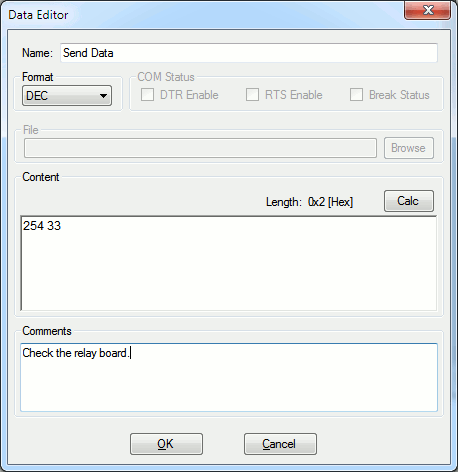

  • Data Editor

  • Click OK button to return Single Data Rule dialog.

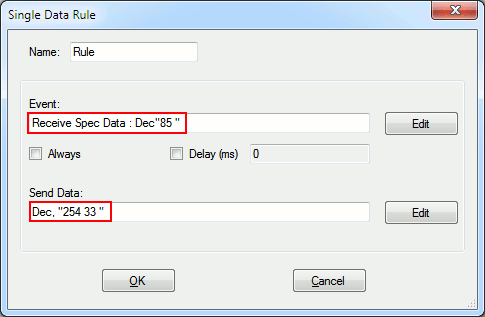

Step 8. After finishing Step 4 to Step 6, the Single Data Rule dialog should be shown as below.

Single Data Rule

  • Click OK button to return Auto Send Rule Setting dialog, the rule will be list on this dialog, check it.

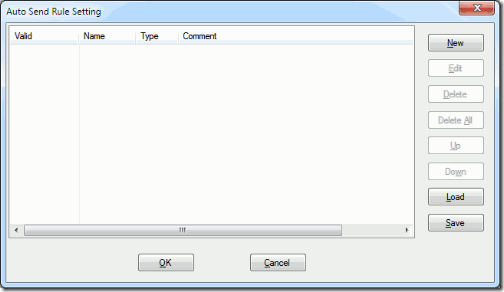

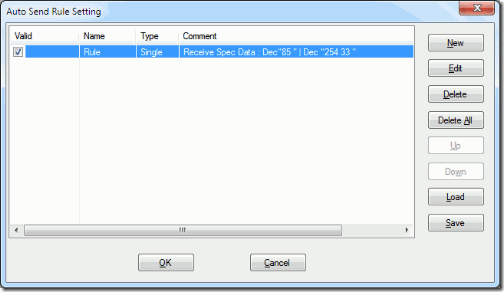

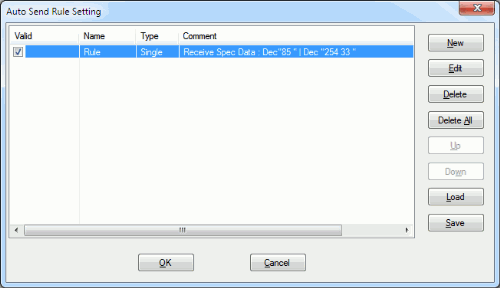

    • Auto Send Rule Setting

  • Click OK button to complete setting.

    • Step 9. Run the rule.

    • Open the port before running the rule.
    • Click iconStart on toolbar to run the rule.

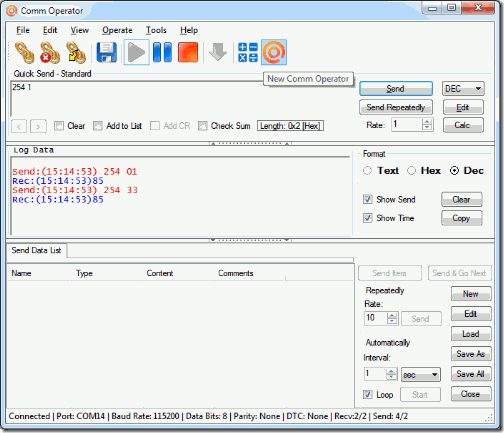

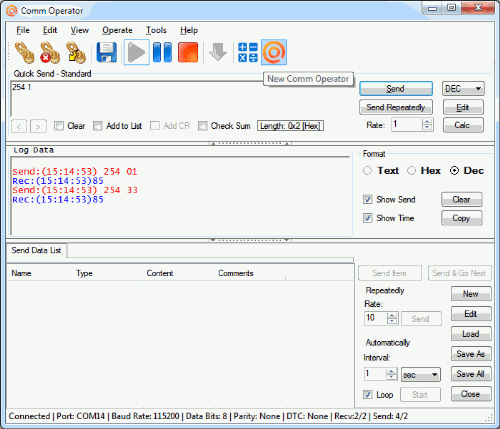

    • The data ‘254 33′ will be sent after receiving ’85’. The result is shown in log window as below.
    • Comm Operator - Auto Send after Receiving Specified Data
