Control 16-Channel ProXR Relay Board with Quick Timer R16X

Quick Timer R16X software is designed to set timer to control 16-channel relay boards automatically.

Here will show you how to control 16-channel ProXR relay board of National Control Devices with Quick Timer R16X.

1. Plug-in power for 16-channel ProXR relay board, and connect it to your computer through USB interface or Ethernet interface.

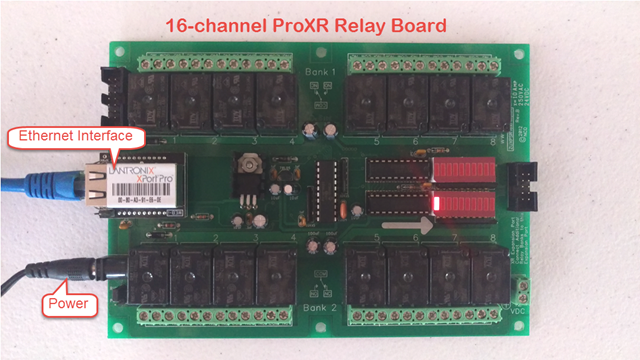

16-channel ProXR Relay Board

2. Download, install and run Quick Timer R16X software.

Quick Timer R16X

3. Click Configure button to open Configuration panel.

  • Select Manufacturer – National Control Devices
  • Select Device Type – ProXR
  • Select connection interface
    • Serial Port/USB for RS-232 and USB interface, select the right Port Name and Baud Rate 115200 for ProXR relay board
    • Network  for Ethernet interface, input IP address and Port 2101 for ProXR relay board

Quick Timer R16X - Configuration

4. Click OK button on Configuration panel. You will see the connection information about the relay board is shown on the left side of status bar. In middle of the status bar, there is a flashing arrow. It indicates the ProXR relay board has been connected with Quick Timer R16X software.

Quick Timer R16X - Connection Status

5. It’s ready to control the relay board manually with Quick Timer R16X.

  • Click Turn All On/Turn All Off button to control all 16 channels together.
  • Or click  On/Off switcher for each channel to control separately.

Quick Timer R16X - Control manually

6. Click Setting button for each channel to set up Duration and Action for auto control.

Quick Timer R16X - Setting for auto control

7. Press Start All button to step into auto control mode for all 16 channels, or press Start button for each channel to control the relay separately.

Quick Timer R16X - Start Auto Control

Here is an example video. It shows how to set timer to control 16-channel ProXR relay board with Quick Timer R16X.
