Quick Timer R8X Supports Robot Electronics’ Relay Board

Quick Timer R8X is high resolution programmable timer software to control up to 8-channel relay controller boards.

The new released Quick Timer R8X v2.5 supports 8-channel relay boards of Robot Electronics as well as the relay boards of National Control Devices and Velleman.

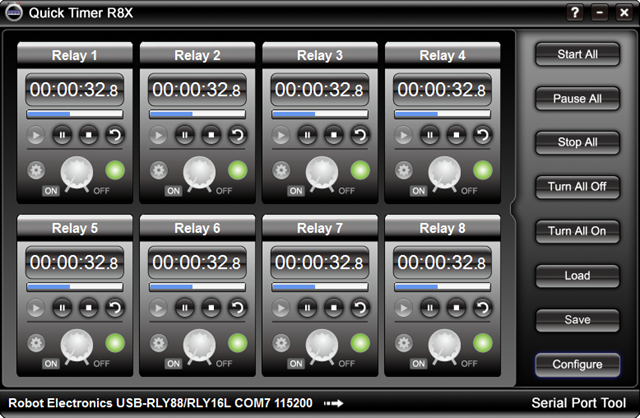

Quick Timer R8X Software Interface

It works well with both  Robot Electronics USB-OPTO-RLY88 and USB –RLY16L 8-channel relay boards.

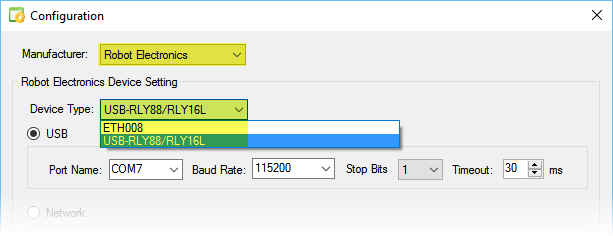

Quick Timer R8X - Configuration - Robot Electronics



Robot Electronics Relay Board USB-RLY16L                     Robot Electronics Relay Board USB-RLY88

It also works well with Robot Electronics’ Ethernet relay board ETH008. Once ETH008 board is connected correctly, the board’s info will be detected and list in Quick Timer R8X –> Configuration panel shown as below.

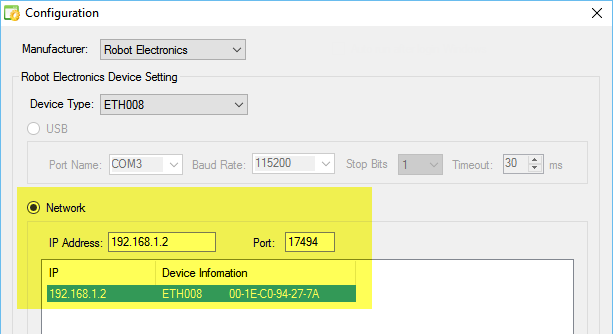

Quick Timer R8X - Configuration - Robot Electronic - ETH008

Robot Electronics ETH008 Relay Board

It’s pretty easy to control Robot Electronics’ relay boards with Quick Timer R8X.
