Test I2C Device TMP100 with Comm Operator

Comm Operator v4.9 supports Quick Send – I2C Panel. It allows to you communicate with I2C devices through FTDI FT232H based USB to I2C bridge.

Here’s how to test I2C device TMP100 with Comm Operator I2C Panel.

Download Comm Operator v4.9 beta version to try.

Step 1: Download and install Comm Operator.

Step 2: Connect I2C device TMP100 with your computer through FTDI FT232H based USB to I2C bridge.

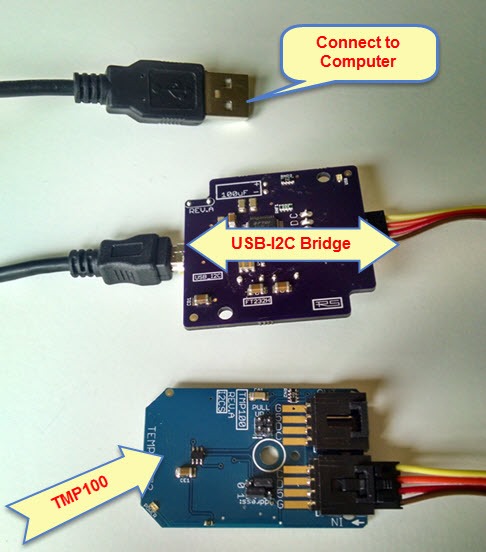

Connect I2C device TMP100 with Computer

Step 3: Run Comm Operator, and Open Connection –> I2C Bridge to connect I2C device TMP100.

Comm Operator - I2C Bridge

Step 4: Click menu View –> I2C Panel to show Quick Send – I2C Panel.

Comm Operator - I2C Panel

Comm Operator - Quick Send - I2C Panel

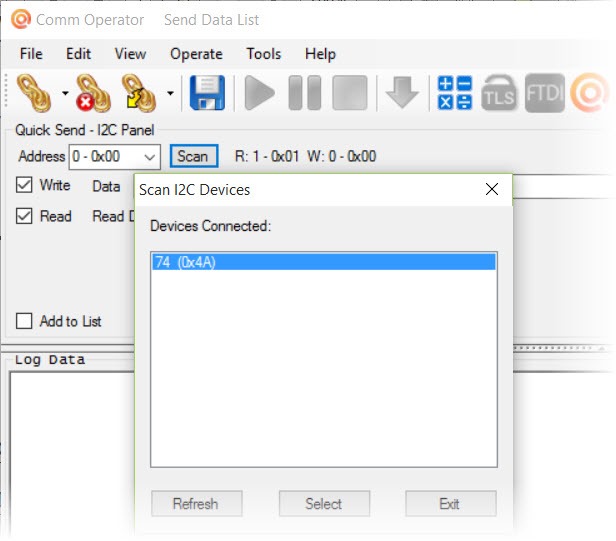

Step 5: Click Scan button to search I2C device TMP100 address.

Scan I2C Device TMP100

If you know the device address, you can just select it from the drop-down list.

Comm Operator - I2C Device Address

Step 6: You can communicate with I2C device TMP100 now.

For example:

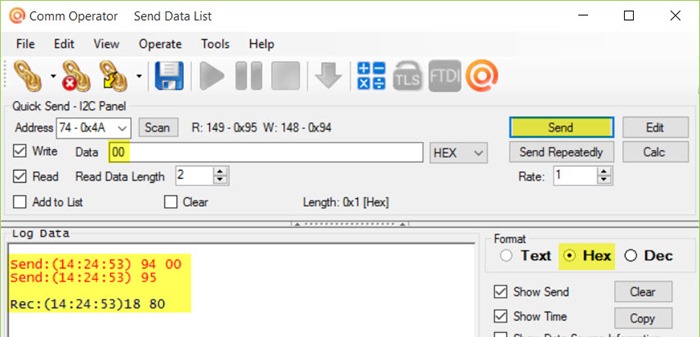

According to I2C protocol and I2C device TMP100 document, check Write and Read, and input data ”00” (it’s Pointer Register of TMP100. “00” indicates Temperature Register), then click Send button to read the value of Temperature Register.

Test I2C Device TMP100 with Comm Operator

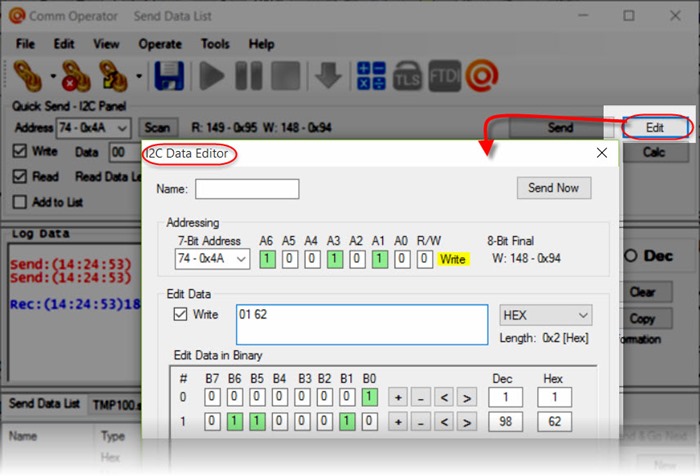

Step 7: Click Edit button to show I2C Data Editor. You can edit address and data here in binary.

I2C Data Editor for TMP100

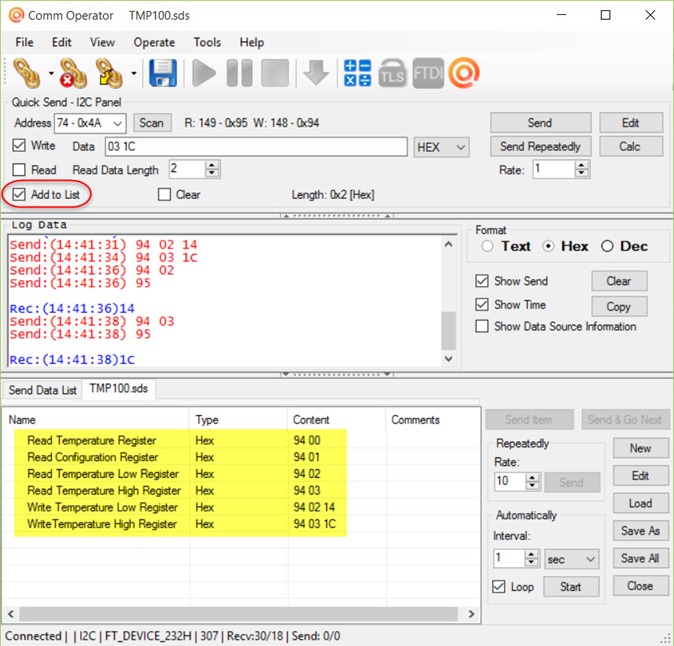

Step 8: Check Add to List when you send data to I2C device TMP100, the data will be added to Send Data List automatically. It’s pretty handy to save the list for later use. You can also Download TMP100.sds file, and load it in Comm Operator directly to test your TMP100 I2C device.

Send Data List for I2C Device TMC100



Back to Comm Operator homepage
