How to Configure Relay Timer R4X

Relay Timer R4X is programmable timer software to control relay manually and automatically.

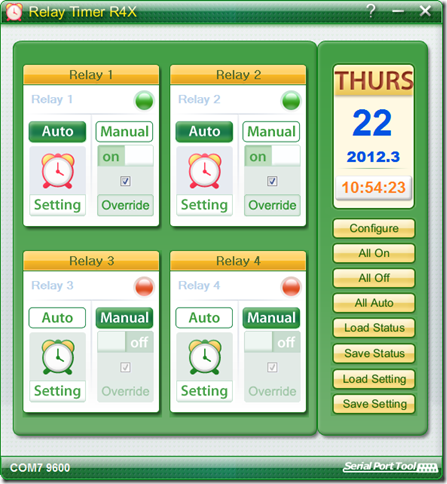

Relay Timer R4X

It works with 4-channel relay controller boards of National Control Devices.

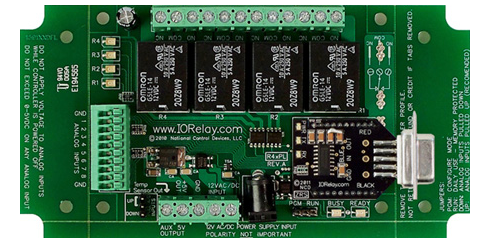

Relay Board of National Control Devices

In order to control your device (relay board) with Relay Timer R4X, be sure to install the application on your PC and then connect the relay board with your PC. There are two ways for connection, Com Port and Network.

Click Relay Timer R4X - Configure button button to show the Configuration dialog.

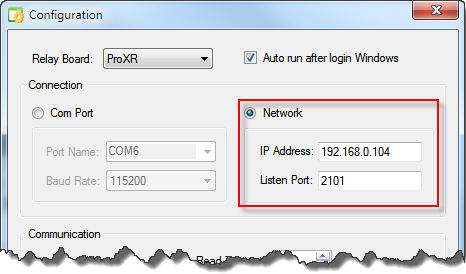

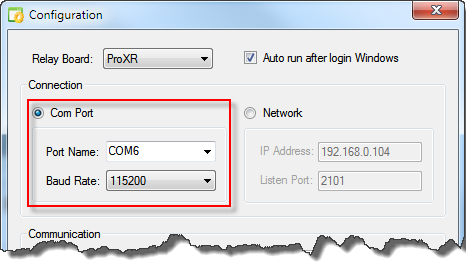

You need select the type of your relay board and the connection way, and select the connection method that the relay board is connected to. Click OK to finish setting.

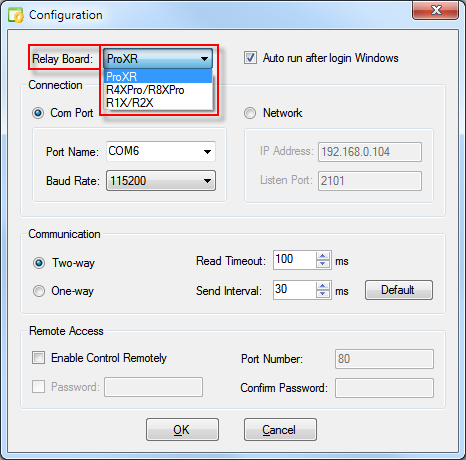

Relay Timer R4X - Configuration

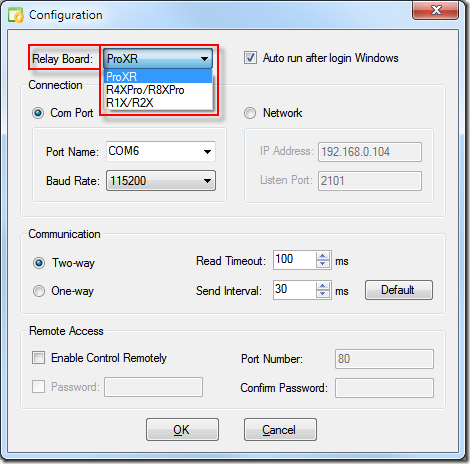

Relay Timer R4X - Configuration

Relay Timer R4X - Configuration

If the connection is available, there will be a arrow show on the status bar to show the data transmission. Now, you can control your relay manually or automatically with schedule setting.

Relay Timer R4X - Status Bar

Otherwise, “Connection Error!” will be shown on the status bar.
