How to Turn On/Off Relay Manually with Relay Timer R1X?

Relay Timer R1X is programmable timer software to control relay manually and automatically. It works with 1-channel relay controller boards of National Control Devices.

Relay Timer R1X

Relay Controller Board of National Control Devices

To control your relay with Relay Timer R1X, you need connect your relay board with your computer and Set Configuration in Relay Timer R1X to make sure the connection is available. You need to select the type of your relay board and the connection way.

It’s very easy to control relay manually. You just need to click the switch button to turn on or turn off relay.

Click Relay Timer R1X - Manualbutton down Relay Timer R1X - Manualto step into manual mode.

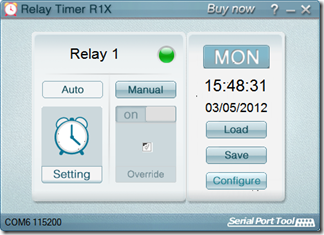

Click the switch button Relay Timer R1X - Manual Switch to turn on the relay. The light becomes green.

Relay Timer R1X - Control Panel

Click the switch button Relay Timer R1X - Manual Switch to turn off the relay. The light becomes red.

 Relay Timer R1X - Control Panel

Back to Relay Timer R1X homepage
