Quick Timer series include Quick Timer R2X, Quick Timer R4X, Quick Timer R8X and Quick Timer R16X. They are programmable timer software to control relay boards of 2 relays, 4 relays, 8 relays and 16 relays.
Each relay can be turned on/off manual. It also can be controlled automatically according to the preset setting. Programmable setting can meet all kinds of your requirement.
Quick time setting and high resolution make them fit for lights control, science experiment, home automation, industry control, energy conservation and so on.
Here’s the example of controlling four lights with Quick Timer R4X.
Task:
Steps:
4. Click Configure button to select the right relay board and connection method.
Here is the setting for relay 1 connected with Light 1.
Here is the setting for relay 2 connected with Light 2.
Here is the setting for relay 3 connected with Light 3.
Here is the setting for relay 4 connected with Light 4.
6. Click Start All button to control the the relays and the lights automatically.
Common Features
1. Both of Relay Timer series and Quick Timer series are timer software to control relay controller boards.
2. Both of them support three types of relay controller board, "ProXR", "R4XPro/R8XPro" and "R1X/R2X" of National Control Devices (NCD).
3. Both of them support Com Port and Network connection between relay controller board and computer.
4. Both of them support separate control panel for each relay channel.
5. Both of them support turning on/off each relay manually.
6. Both of them support turning on/off each relay automatically during some time.
Different Features
1. The Control Panel of Relay Timer series is different from that of Quick Timer series.

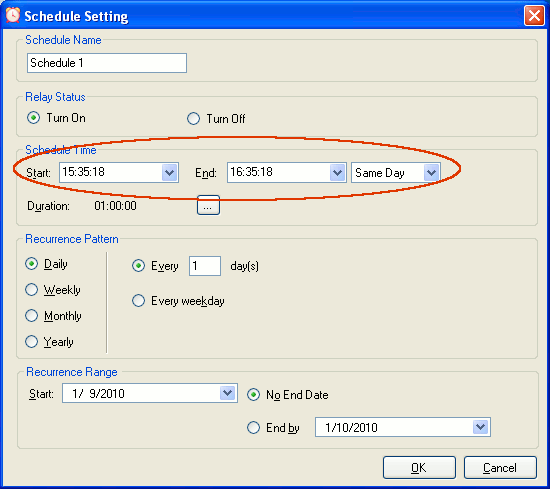

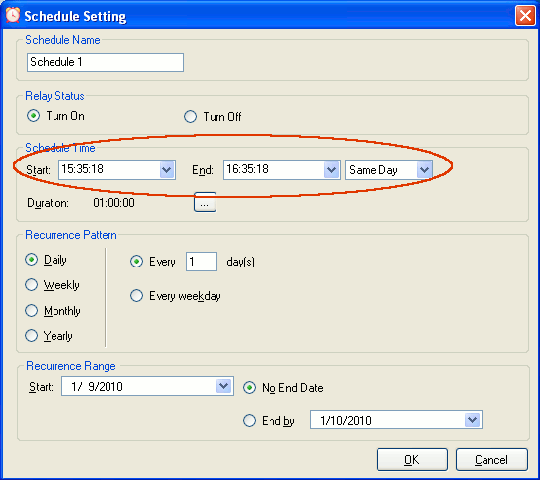

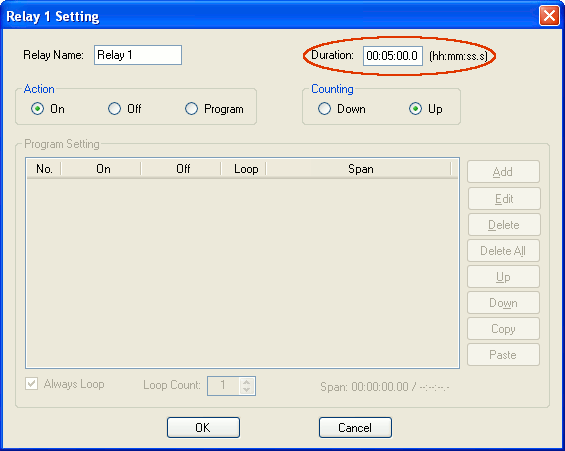

| Control Panel of Relay Timer series | Control Panel of Quick Timer series |
2. The requirement of time setting for Relay Timer series is different from that of Quick Timer series.
If you are looking for the best timer application, you are in right place!
Timer software is one area that Serial Port Tool is focusing for years. Our timer applications are supposed to work in environment that requires accurate, reliable, robust and easy to use. There are several things to make the our timer software as the best timer software.
Working with best hardware
All our timer software works with relay controller from National Control Device. National Control Device is the largest relay controller producer in the world. They have relay boards of all types and supports all known interfaces, which include regular RS232, USB, optical fiber, Ethernet, Wi-Fi, ZigBee, wireless, Bluetooth, and even satellite. The protocol the relay boards is binary protocol, which works very fast and reliable. We have been cooperating with National Control Device for years. Our timer applications work with the relay boards from National Control Device seamlessly.
Here is the diagram about how our timer series software send command.
Accurate
Our timer software are accurate.
It control relay with high resolution computer clock. Although all timer software use computer clock, there are big difference. There are two kinds of timer inside the computer, one is low resolution, which ticks 18 times per seconds. It is OK for most requirement, In general, you cannot depend on a Windows timer to have accuracy better than 55 milliseconds, and very often the best you’ll be able to do is 100 milliseconds: 1/10 second.. We use the high resolution timer that the same timer used in multimedia application, which can get resolution of 5 – 10 milliseconds. That makes big difference for real time application.
Thanks to protocol of relay controller of Nation Control Device, it is possible that we update 8 relays status one time. It is much fast than update relay status one by one. Most of relay controller from Nation Control Device works at baud rate 115200, which is very fast, and the processer of relay controller is very fast too. It only take about 30 ms to update 8 relays. Using solid state relay controller will gain even better performance. Our timer application calculate all relays’ status together, even each of them work separately.
All calculation and updating relay status is done in separate threads. That means the GUI can response user’s action all the time, while at the same time, nothing will slow down the calculation and updating relay status. The threads are well polished. It use as less resource of processer as possible while keep the highest accurate.
There are indicator of relay status in control panel of timer software. They show the current status that the relay should be. The status are updated with a separate thread, they keep updating even when user interaction with GUI.
Reliable
As an application controls hardware, it has to be reliable. There are many factors effect reliability. Hardware could fail. The connection could be broken. The power could fail. The computer could crash. It is easy to create a software that run perfect in perfect condition. However, it is not that easy to create a software works in a REAL environment. The code to deal with exception generally cost much more than just to implement the basic function. Sometimes, it is hard to say if it is the defect of hardware, connection or layout cause the problem. The software has to have a way to handle abnormal condition and maintain the system work as good as possible. We got a lot of experience by writing software work with hardware and apply those experience to our timer software, and make it very reliable. We have confidence in our software.
Even the application sends the command to update the relays at the correct time, that won’t guaranty the status of relay will be correct. The connection might be broken. Especially in wireless or network environment, this happens all the time, like there are strong radio near the boards. Two-ways communication is used in timer software. Every time when application update the status of the relays, it will query the device to see if the real status of relays are correct. If the status is not correct, it will update relay status again until either the status is correct or time out. This is been done in a separate thread, so the main program won’t hang up.
There are still any possibility make the status of relay wrong. For example, there might be power failure. The board lost power. When power on, the relays’ status of the board will be default initial value. If the program only update relays when there is change of status, the real status of relay will be wrong until next time it is updated. Our timer software update relay status both when there is change in status, and at the specific time interval. The interval is generally set to 2 – 5 seconds, that means, if there is a power failure, or lost connection, the status of relay will be recovered in seconds.
When the connection is lost, or hardware doesn’t response, the timer software will try to update the status of relays, at the same time, it will report the error on GUI. This is very important. User will know there are something wrong, or might be something wrong. User can take actions to make the system work.
Robust
True native .net program
Our timer software are written by native .net code. Native .net code are known as safe language. They can run safely in all windows platform after Windows XP.
The program will keep seeding detect command if there is lose of connection. It will recover the status of relay at the first time when the connection is recovered.
The program can be setup to start automatically after logging in windows. The program will write the status of program to hard driver whenever there is status change. If the program is closed accidently, it will load the last status from hard driver.
