1. How to Set Connection

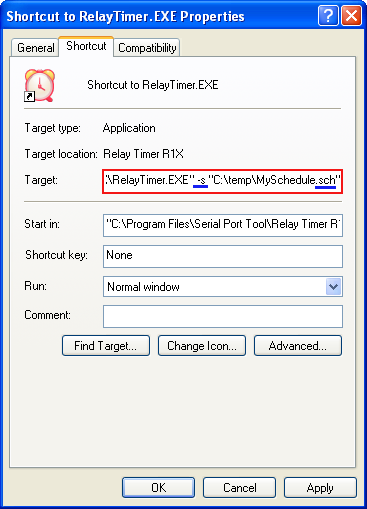

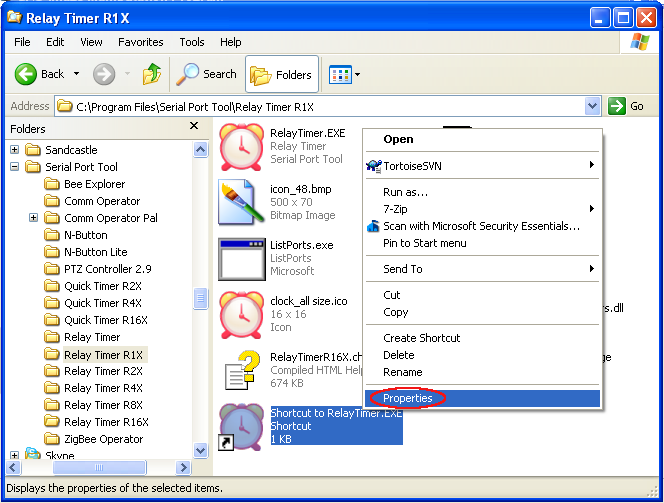

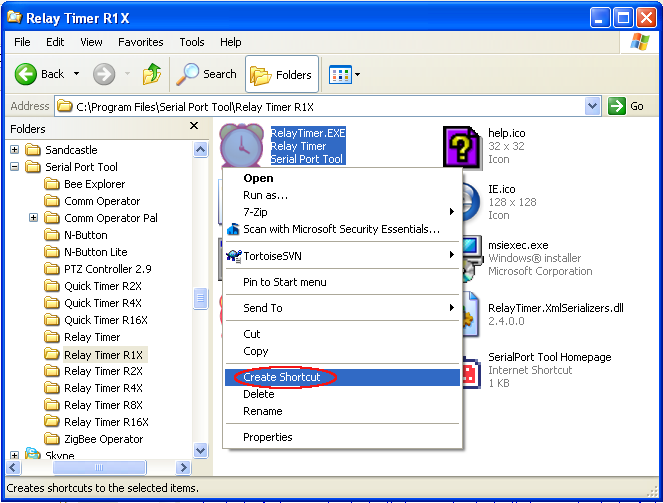

In order to control your device with Relay Timer R1X, be sure to connect NCD relay board with your computer and connect your device with NCD 1-channel relay board at first, then set the connection as below.

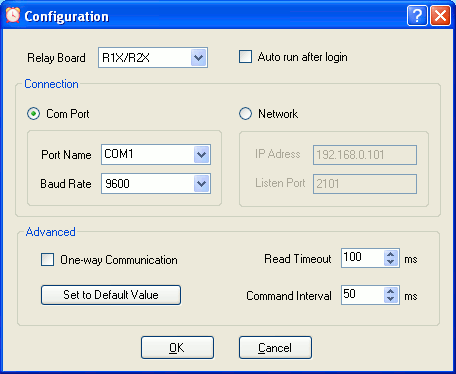

Click button on the interface. The Configuration dialog will be shown.

Select the type of the reay board.

Select the type of connection.

Click OK to finish setting.



2. How to Turn On/Off Relay Manually

The light on top right of relay control panel indicates the status of the relay. Red is for relay off. Green is for relay on.

Click   button down to step into manual operation mode.

Click the switch   to turn on the relay. The light becomes green.

Click the switch   to turn off the relay. The light becomes red.





3. How to Turn On/Off Relay Automatically

Click   button down to step into auto mode.

To control relay automatically, the schedule of relay status must be set at first.

Click button on the relay control panel to open Relay Setting dialog.

The relay can be given a name here.

Click Add button to open Schedule Setting dialog.

Edit the Schedule Name, select Relay Status, set Schedule Time, select Recurrence Pattern and Range .

Click OK to return Relay Setting dialog.

Different schedules can be added by this way.

Click OK to finish relay setting.

The relay will be turned on/off automatically according to the schedule list.
